CATERPILLAR EXCAVATOR

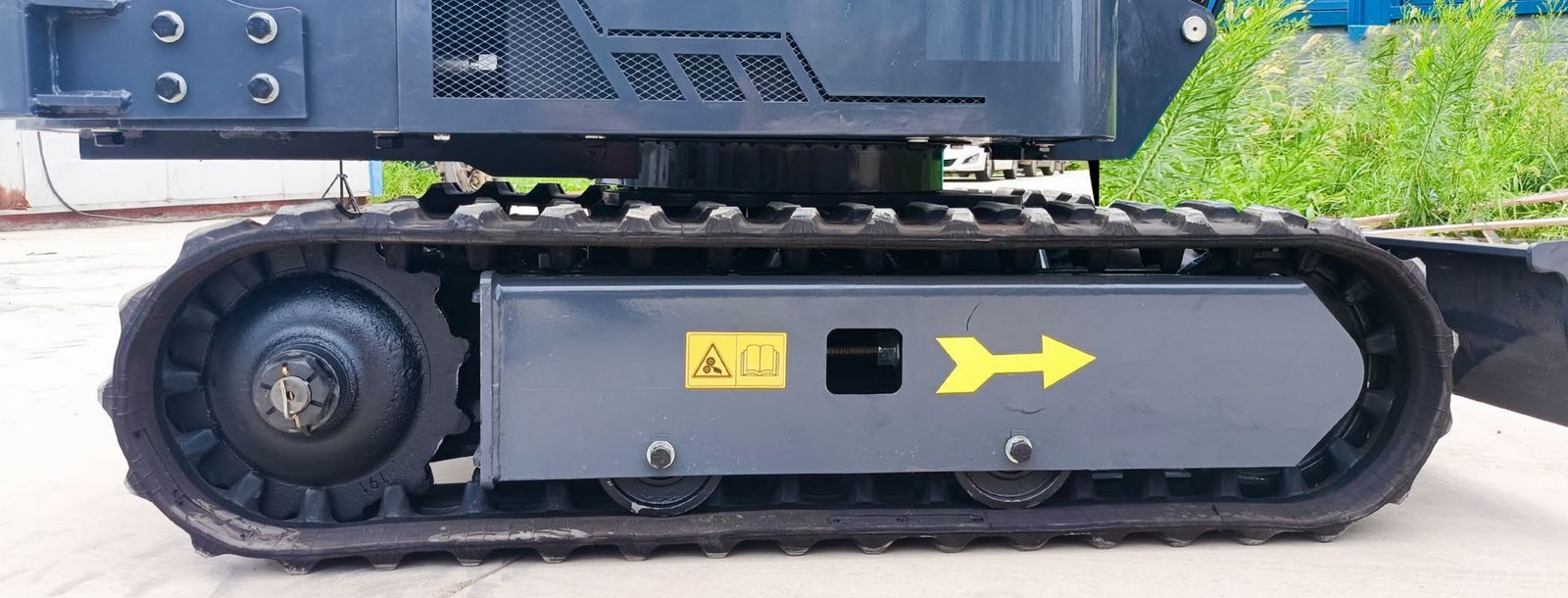

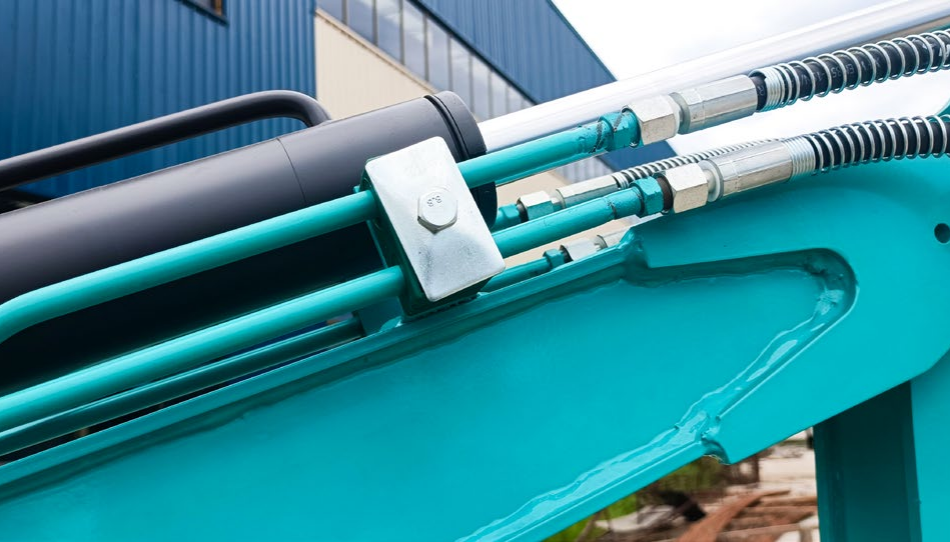

① Track position ② Excavator bucket ③ Joystick ④ Bulldozer shovel ⑤ Bucket Cylinder ⑥ Engine compartment ⑦ 2-in-1 anti roll rack⑧Seats
PRODUCT INTRODUCTION
Simple to operate, compact and flexible, easy totransport, and can work in small spaces
It has multiple functions such as excavation, crushingtrench cleaning, and drilling.
lt can quickly replaceattachments and greatly improve the machineutilization rate.
Excellent work efficiency and high cost performance
Product parameters
| Model No | DW-12 |
| Dimensions | 2876×850×1535mm |
| Rated power | 8.6kw |
| Bucket capacity | 0.025m³ |
| Engine model | Science Popularization/Changchai Bailitong EPA |
| Operating weight | 900kg |
| Maximum excavating force | 7.2kn |
| Set work pressure | 16mpa |
| Rotation speed | 13r/min |
| Walking speed | 2.2km/h |
| Gradeability | 30° |
| Ground pressure | 20kpa |
| Excavation distance | 3077mm |
| Excavation depth | 1626mm |
| Excavation height | 2550mm |
| Dumping height | 1687mm |
