caterpillar excavator
①Track position
② Excavator bucket
③Engine compartment

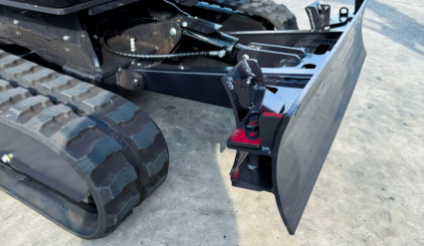

④ Bulldozer shovel
⑤Bucket Cylinder
⑥ Mechanical arm
⑦ Joystick
⑧ Cockpit
PRODUCT INTRODUCTION
Simple to operate, compact and flexible, easy totransport, and can work in small spaces.It has multiple functions such as excavation, crushingtrench cleaning, and drilling.lt can quickly replaceattachments and greatly improve the machineutilization rate.Excellent work efficiency and high cost performance.
Product parameters
| Model No | DW-25 |
| Dimensions | 2300×1300×2550mm |
| Power | 14.2kw/21kw |
| Bucket capacity | 0.06m³ |
| Engine model | Kubota D1105/Changchai 390 |
| Operating weight | 2000kg |
| Track width | 250mm |
| Excavation bucket width | 420mm |
| Rradius of gyration | 756mm |
| Transportation length | 3980mm |
| Ground clearance | 420mm |
| Maximum dumping height | 2673mm |
| Track width | 1050mm |
| Maximum excavation depth | 2600mm |
| Maximum excavation height | 3388mm |
| Ground excavation radius | 4163mm |
