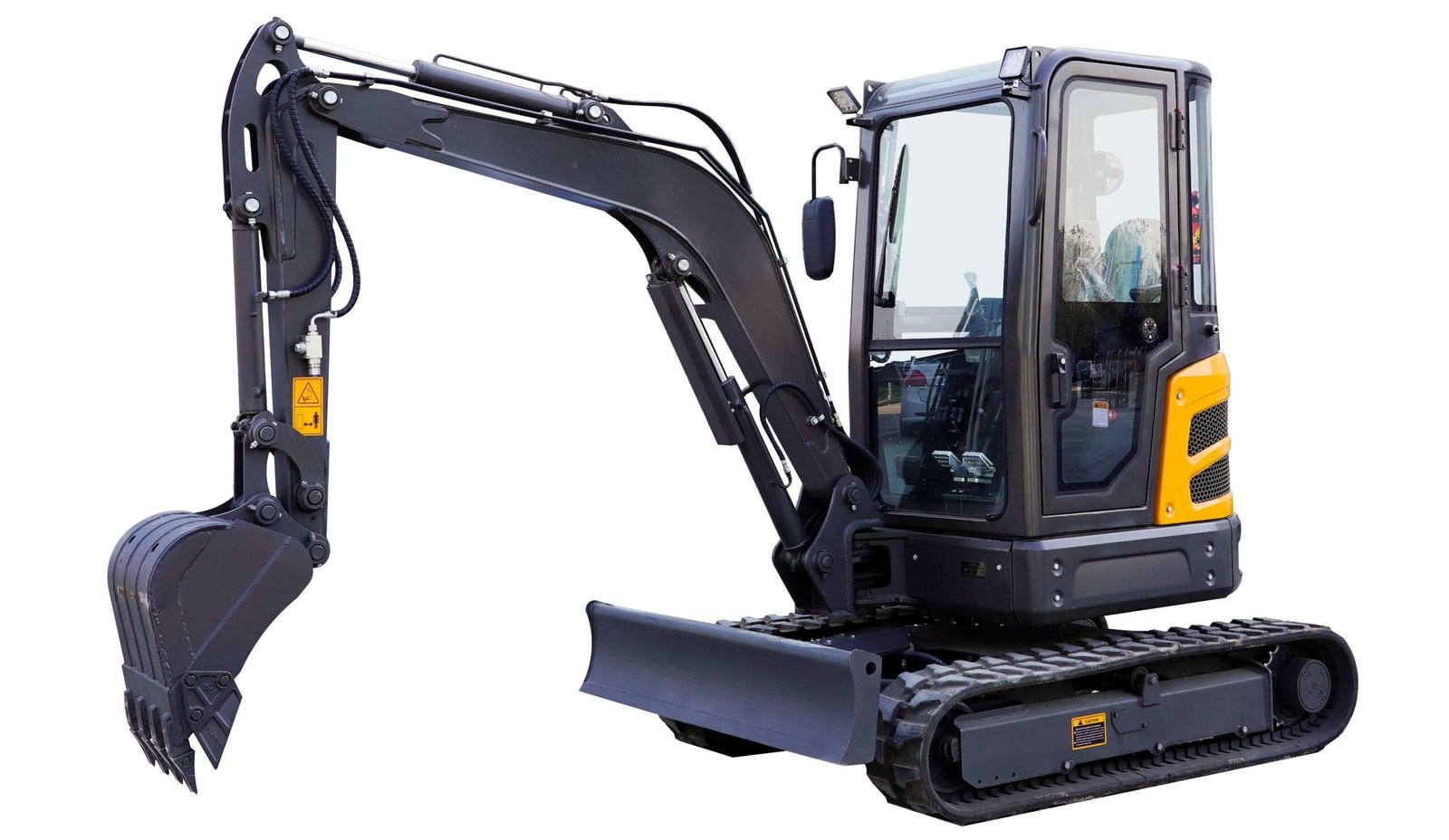

caterpillar excavator

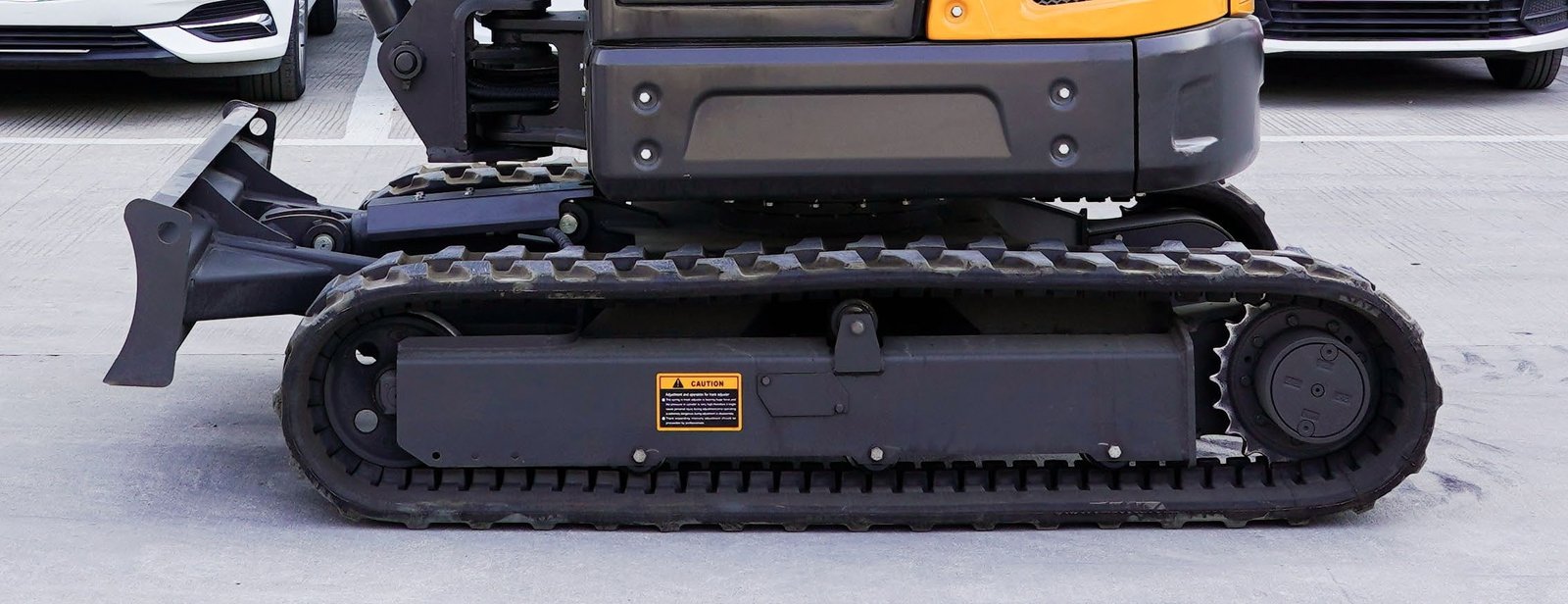

① Track position
② Excavator bucket
③ Oil cylinder baffle

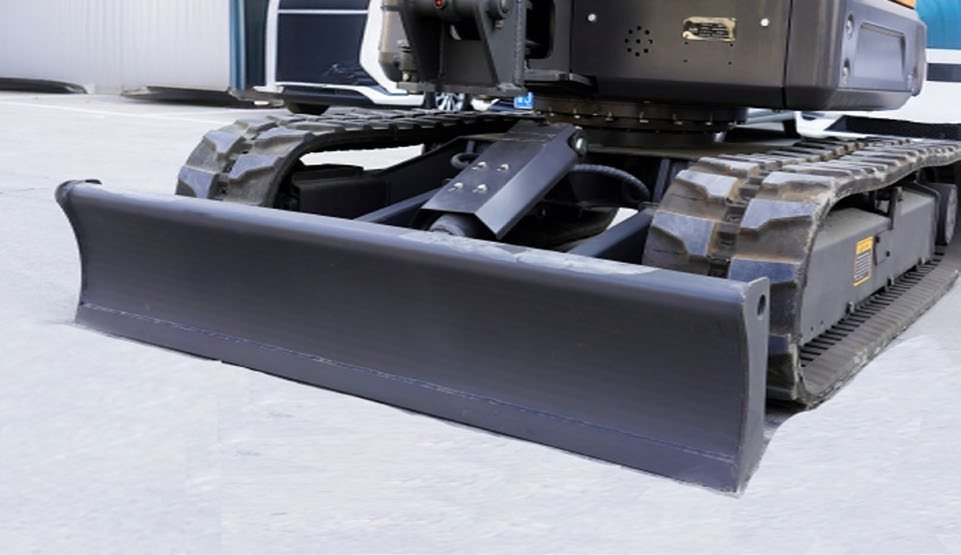

④ Bulldozer shovel
⑤Bucket Cylinder

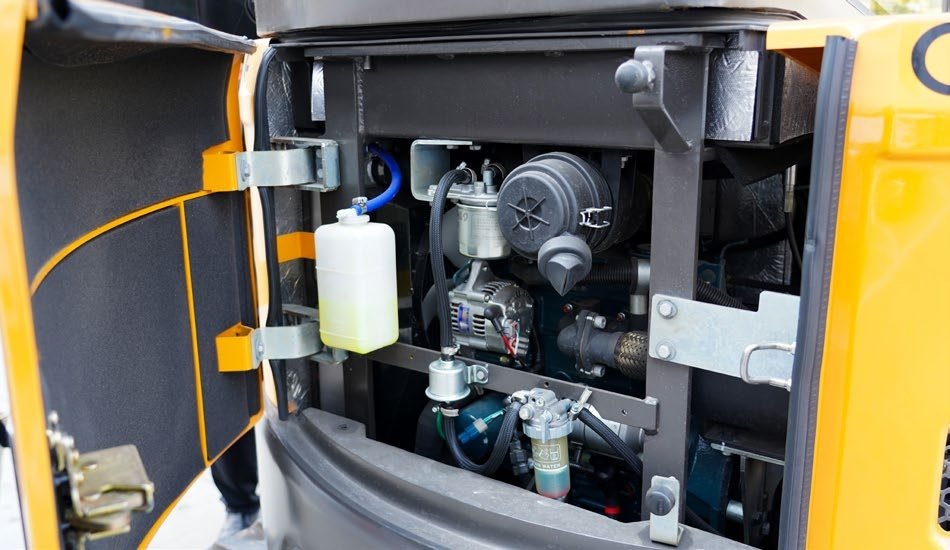

⑥ Engine compartment
⑦ mechanical arm
⑧ Cockpit
PRODUCT INTRODUCTION
Simple to operate, compact and flexible, easy totransport, and can work in small spaces.It has multiple functions such as excavation, crushingtrench cleaning, and drilling.lt can quickly replaceattachments and greatly improve the machineutilization rate.Excellent work efficiency and high cost performance.
Product parameters
| Model No | DW-27 |
| Dimensions | 4195×1550×2480mm |
| Bucket digging force | 23.5kn |
| Arm excavation force | 14kn |
| Hydraulic system pressure | 20.5mpa |
| Ground pressure | 24kpa |
| Machine weight | 2750 kilograms |
| Fuel tank | 23l |
| Boom length | 2200MM |
| Arm length | 1300MM |
| Ground clearance | 286mm |
| Large dumping height | 3005mm |
| Track width | 1250mm |
| Maximum excavation depth | 2830mm |
| Maximum excavation height | 4427mm |
| Maximum digging radius | 4835mm |
